Sandvik Coromant

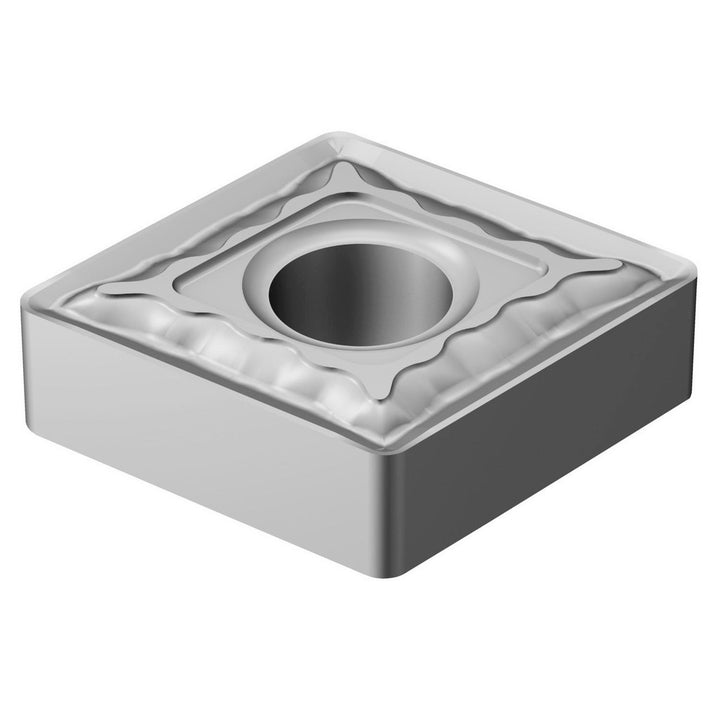

CNMG 19 06 12-QM H13A Carbide Insert, Grade H13A - Sandvik Coromant 5725551
MFR# 5725551ISO/ANSI# CNMG 19 06 12-QM H13ACat# CNMG 19 06 12-QM H13ASeries T-Max P
$31.28List $40.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5725551 is a CNMG 19 06 12-QM H13A carbide indexable insert, grade H13A. Suited for steel.
Specifications
Chip breakerQM
Clearance codeN
Coating processUncoated
Corner radius in3/64
Full radiusYes
Hole diameter0.2500
Included angle80
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7143
Insert materialCarbide
Insert shapeDiamond
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 19 06 12-QM H13A
Length range0.7000 - 10.0000
Manufacturers catalog numberCNMG 19 06 12-QM H13A
Manufacturer gradeH13A
Maximum depth of cut0.7143
Multi use applicationTurning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
