Sandvik Coromant

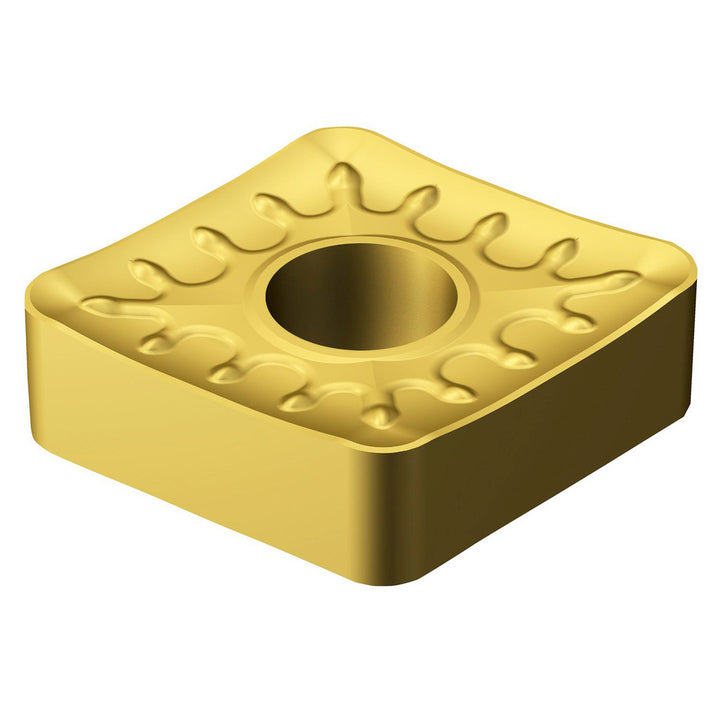

CNMM190612QR235 Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5725717
MFR# 5725717ISO/ANSI# CNMM190612QR235Series T-Max P
$39.08List $50.11
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
Grade235
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5725717 is a CNMM190612QR235 carbide indexable insert, grade 235, TiCN coated. Suited for steel.
Specifications
Chip breakerQR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Hole diameter0.3122
Included angle80
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7614
Insert materialCarbide
Insert shapeDiamond
Insert size code643
Insert styleCNMM
Insert thickness in1/4
Iso codeCNMM190612QR235
Length range0.7000 - 10.0000
Manufacturers catalog number5725717
Manufacturer grade235
Maximum depth of cut0.7142
Number of cutting edges2
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
