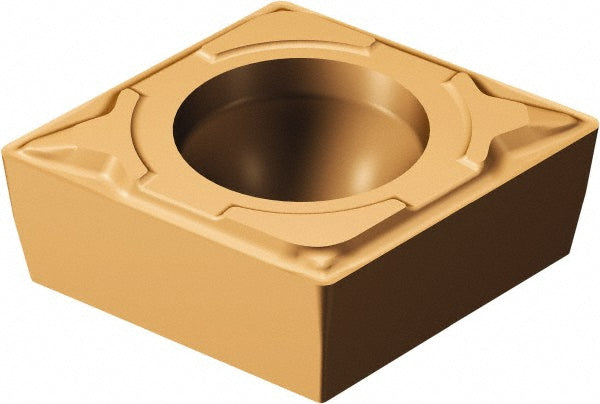

CPMT 09 T3 04-MF 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5725906
MFR# 5725906ISO/ANSI# CPMT 09 T3 04-MF 1125Series CoroTurn 111
$16.18List $20.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5725906 is a CPMT 09 T3 04-MF 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerMF
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3650
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleCPMT
Insert thickness in5/32
Iso codeCPMT 09 T3 04-MF 1125
Length range0.3000 - 0.4000
Manufacturer grade1125
Number of cutting edges2
Primary workpiece materialSteel
Relief angle11
Secondary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
Tolerance codeM
Wiper edgeNo
