Sandvik Coromant
CPMT 09 T3 08-MF 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5726044
MFR# 5726044ISO/ANSI# CPMT 09 T3 08-MF 1125
$16.18List $20.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1125
MaterialCarbide
CoatingTiAlN
Description

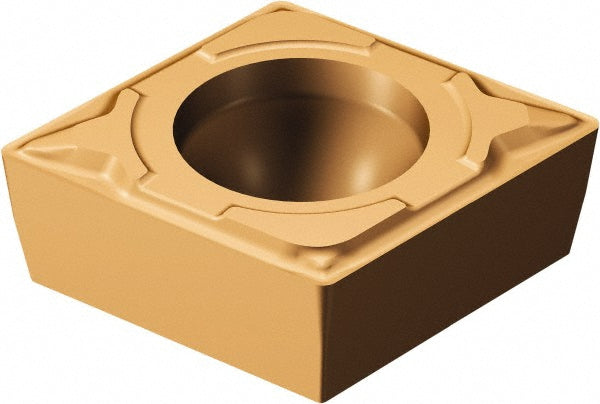

The Sandvik Coromant 5726044 is a CPMT 09 T3 08-MF 1125 carbide indexable insert, grade 1125, TiAlN coated.
Specifications
Chip breakerT
Clearance codeP
Coating finishTiAlN
Corner radius in1/32
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.3493
Insert materialCarbide
Insert shapeDiamond
Insert size code32.52
Insert styleCPMT
Insert thickness in5/32
Iso codeCPMT 09 T3 08-MF 1125
Length range0.3000 - 0.4000
Manufacturer grade1125
Relief angle11
Tolerance codeM
