Sandvik Coromant

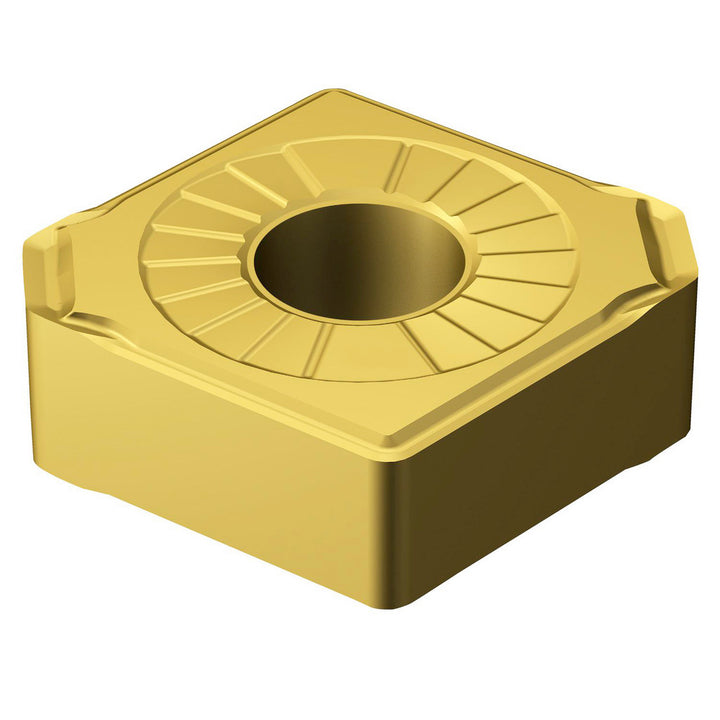

CNMX 12 04 A2-SM S05F Carbide Insert, Grade S05F, TiCN - Sandvik Coromant 5726057
MFR# 5726057ISO/ANSI# CNMX 12 04 A2-SM S05FSeries T-Max P
$23.49List $30.13
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeS05F
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5726057 is a CNMX 12 04 A2-SM S05F carbide indexable insert, grade S05F, TiCN coated. Suited for superalloy, titanium.
Specifications
Chip breakerSM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.1496
Insert materialCarbide
Insert shapeDiamond
Insert size code43
Insert styleCNMX
Insert thickness in3/16
Iso codeCNMX 12 04 A2-SM S05F
Length range0.0000 - 0.3000
Manufacturer gradeS05F
Number of cutting edges4
Primary workpiece materialSuperalloy; Titanium
Relief angle0
Tolerance codeM
Wiper edgeNo
