Sandvik Coromant

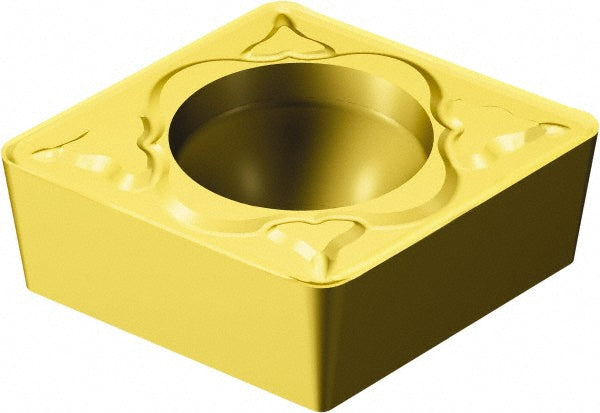

CPMT 09 T3 08-MM 2015 Carbide Insert, Grade 2015, TiCN - Sandvik Coromant 5726062
MFR# 5726062ISO/ANSI# CPMT 09 T3 08-MM 2015Series CoroTurn 111
$15.48List $19.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade2015
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5726062 is a CPMT 09 T3 08-MM 2015 carbide indexable insert, grade 2015, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMM
Clearance codeP
Coating finishTiCN
Corner radius in1/32
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3807
Insert materialCarbide
Insert shapeDiamond
Insert size code32.52
Insert styleCPMT
Insert thickness in5/32
Iso codeCPMT 09 T3 08-MM 2015
Length range0.3000 - 0.4000
Manufacturers catalog number5726062
Manufacturer grade2015
Maximum depth of cut0.3492
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle11
Tolerance codeM
Wiper edgeNo
