Sandvik Coromant

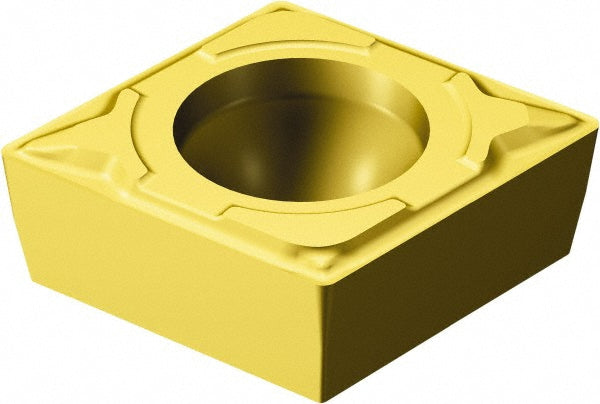

CPMT 06 02 04-MF 2015 Carbide Insert, Grade 2015, TiCN - Sandvik Coromant 5726109
MFR# 5726109ISO/ANSI# CPMT 06 02 04-MF 2015Series CoroTurn 111
$14.32List $18.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade2015
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5726109 is a CPMT 06 02 04-MF 2015 carbide indexable insert, grade 2015, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMF
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2381
Insert materialCarbide
Insert shapeDiamond
Insert size code21.51
Insert styleCPMT
Insert thickness in3/32
Iso codeCPMT 06 02 04-MF 2015
Length range0.0000 - 0.3000
Manufacturer grade2015
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle11
Tolerance codeM
Wiper edgeNo
