Sandvik Coromant

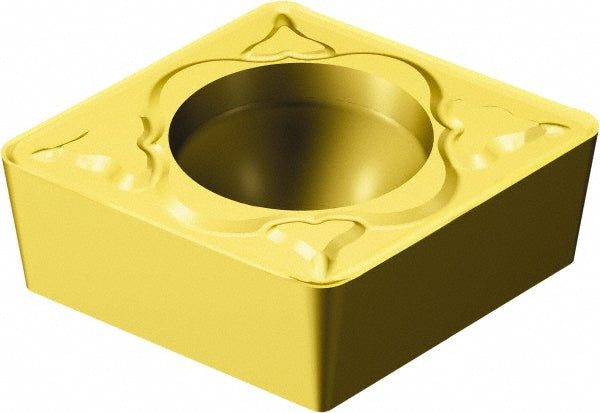

CPMT 06 02 04-MM 2035 Carbide Insert, Grade 2035, TiAlN - Sandvik Coromant 5726133
MFR# 5726133ISO/ANSI# CPMT 06 02 04-MM 2035Series CoroTurn 111
$13.98List $17.93
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade2035
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5726133 is a CPMT 06 02 04-MM 2035 carbide indexable insert, grade 2035, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMM
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeDiamond
Insert size code21.51
Insert styleCPMT
Insert thickness in3/32
Iso codeCPMT 06 02 04-MM 2035
Length range0.0000 - 0.3000
Manufacturers catalog number5726133
Manufacturer grade2035
Maximum depth of cut0.2382
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle11
Tolerance codeM
Wiper edgeNo
