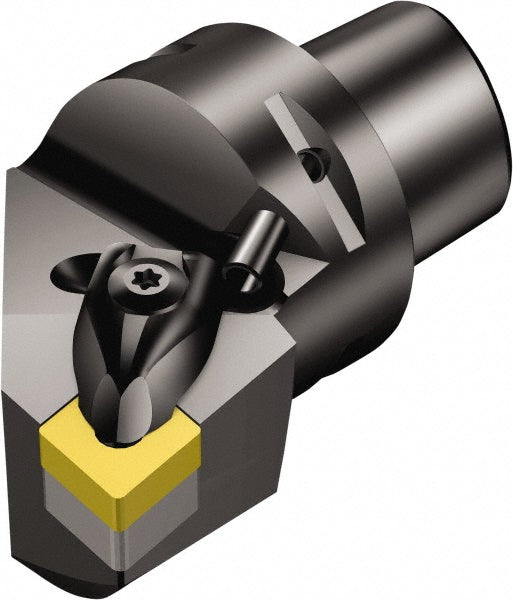

Indexable Turning & Profiling - Sandvik Coromant 5727501
MFR# 5727501Series T-Max P
$376.14List $399.60
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5727501 indexable turning & profiling. Series T-Max P.
Specifications
Axial rake angle-6.00
Center to cutting edge1.0630
Compatible insert styleCNMG 120408
Complete insert compatibilityCNMG 120408
Coolant throughYes
Cutting directionLeft Hand
Head connection sizeC4
Head length projection1.9685
Insert holding methodWedge
Internal or externalInternal
Maximum hole depth1.9685
Minimum hole diameter4.3307
Neck diameter1.5748
Radial rake angle degrees-6
System sizeC4
