Sandvik Coromant

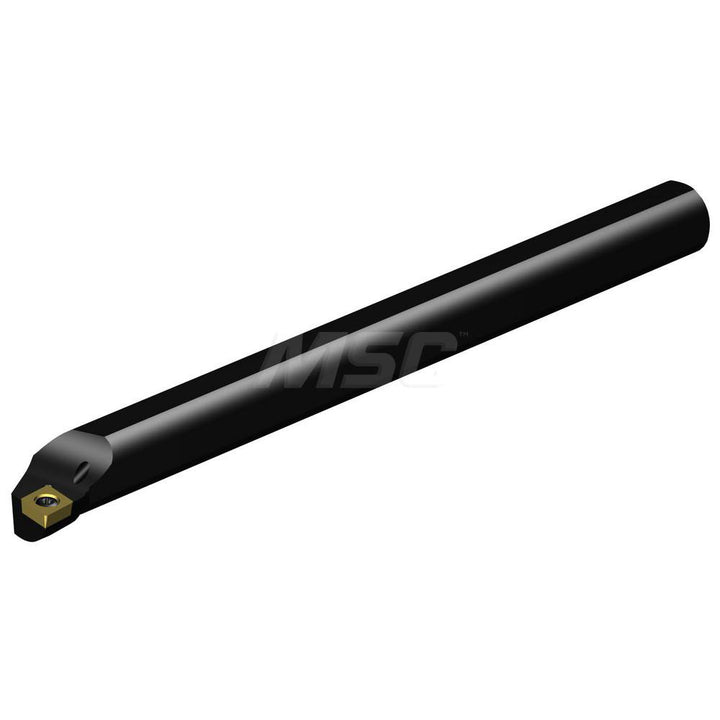

Indexable Boring - Sandvik Coromant 5727598
MFR# 5727598Cat# A16T-SCLCR 4Series CoroTurn 107
$289.73List $307.80
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5727598 indexable boring. Series CoroTurn 107.
Specifications
Back of bar to cutting edge12.0000
Center to cutting edge0.6400
Coolant throughYes
Hand of holderRight Hand
Insert compatibilityCCMT 432
Insert holding methodScrew Clamping
Insert inscribed circle in1/2
Insert thickness in3/16
Lead angle0.00
Manufacturers catalog numberA16T-SCLCR 4
Minimum bore diameter1.2008
Minimum bore diameter using diamond insert cartridge1.2008
Minimum bore diameter using triangle insert cartridge1.2008
Multi use applicationBoring; Turning
Multi use toolYes
Neck diameter in1
Number of inserts used on toolholder1
Overall length in12
RakeNeutral
Rake angle0.00
Shank diameter in1
Toolholder styleA-SCLC
Tool materialSteel
