Sandvik Coromant

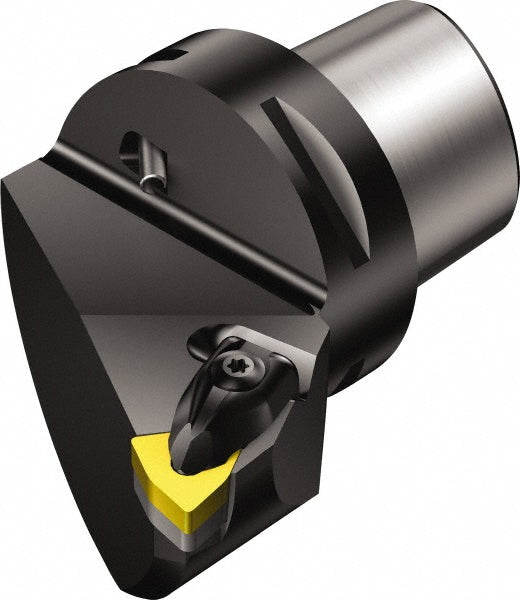

Indexable Turning & Profiling - Sandvik Coromant 5727694
MFR# 5727694Series T-Max P
$376.14List $399.60
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5727694 indexable turning & profiling. Series T-Max P.
Specifications
Axial rake angle-6.00
Center to cutting edge1.0630
Compatible insert styleWNMG 060408
Complete insert compatibilityWNMG 060408
Coolant throughYes
Cutting directionRight Hand
Head connection sizeC4
Head length projection1.9685
Insert holding methodWedge
Internal or externalInternal
Maximum hole depth1.9685
Minimum hole diameter2.3622
Neck diameter1.5748
Radial rake angle degrees-6
System sizeC4
