Sandvik Coromant

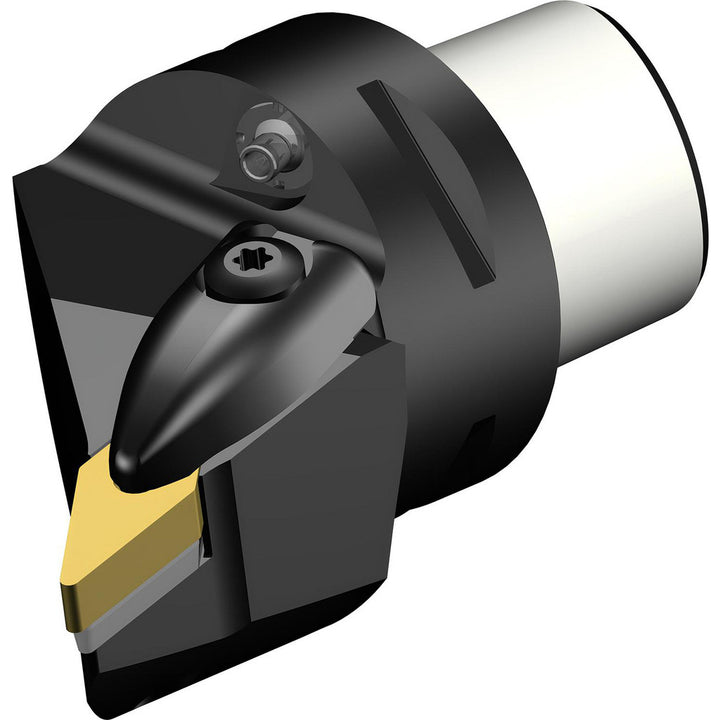

Indexable Turning & Profiling - Sandvik Coromant 5728298
MFR# 5728298Series T-Max P
$376.14List $399.60
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5728298 indexable turning & profiling. Series T-Max P.
Specifications
Axial rake angle-4.00
Center to cutting edge1.0630
Compatible insert styleVBMT 160408
Complete insert compatibilityVNMG 160408
Coolant throughYes
Cutting directionRight Hand
Head connection sizeC6
Head length projection2.4410
Insert holding methodWedge
Internal or externalInternal
Maximum hole depth2.4410
Minimum hole diameter2.3622
Neck diameter1.5748
Radial rake angle degrees-13
System sizeC4
