Sandvik Coromant

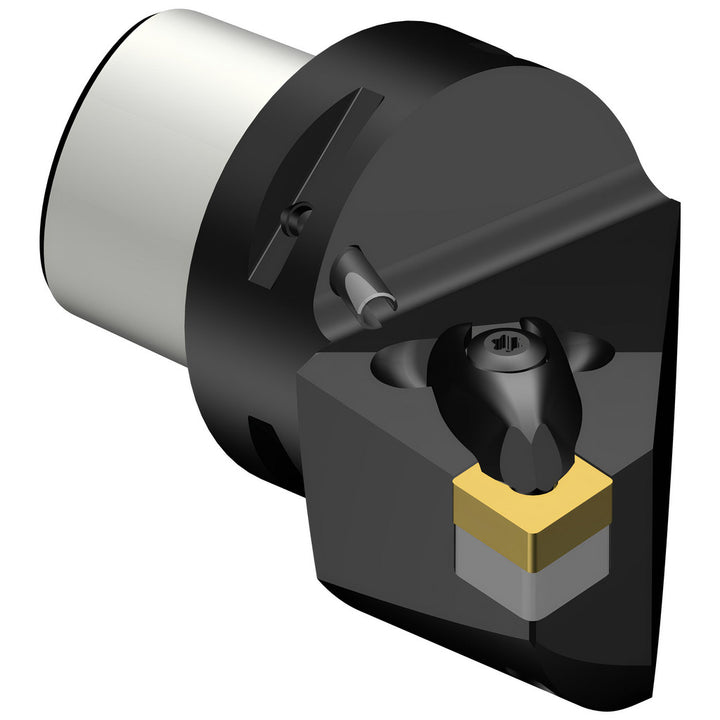

Indexable Turning & Profiling - Sandvik Coromant 5728660
MFR# 5728660Series T-Max P
$418.83List $444.96
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5728660 indexable turning & profiling. Series T-Max P.
Specifications
Axial rake angle-6.00
Center to cutting edge1.3780
Compatible insert styleCNMG 120408
Complete insert compatibilityCNMG 120408
Coolant throughYes
Cutting directionLeft Hand
Head connection size32
Head length projection2.3622
Insert holding methodWedge
Internal or externalInternal
Maximum hole depth2.3622
Minimum hole diameter4.3307
Neck diameter1.9685
Radial rake angle degrees-6
System sizeC5
