Sandvik Coromant

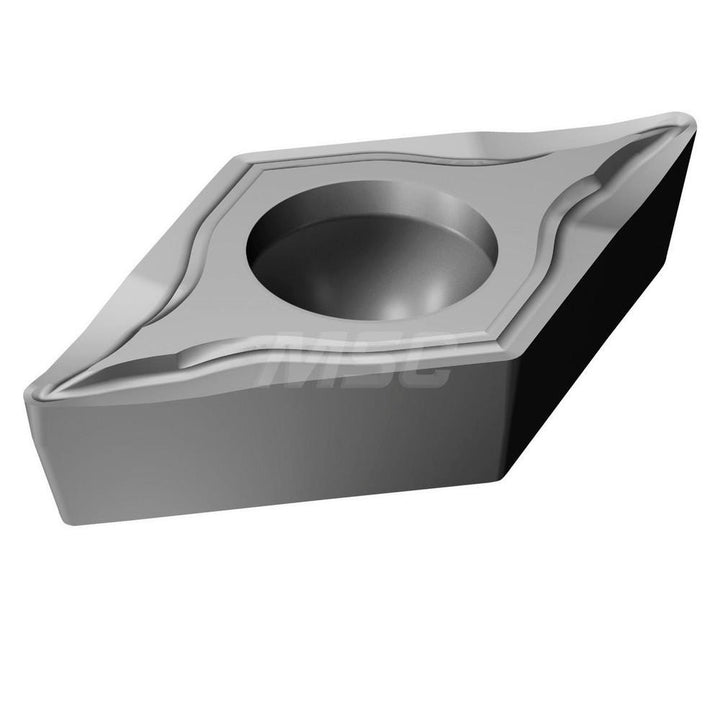

DCGT 11 T3 04-UM H13A Carbide Insert, Grade H13A - Sandvik Coromant 5730403
MFR# 5730403ISO/ANSI# DCGT 11 T3 04-UM H13ASeries CoroTurn 107
$24.20List $31.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5730403 is a DCGT 11 T3 04-UM H13A carbide indexable insert, grade H13A. Suited for steel.
Specifications
Chip breakerUM
Clearance codeC
Corner radius in1/64
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4420
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT 11 T3 04-UM H13A
Length range0.4000 - 0.5000
Manufacturer gradeH13A
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeG
Wiper edgeNo
