Sandvik Coromant

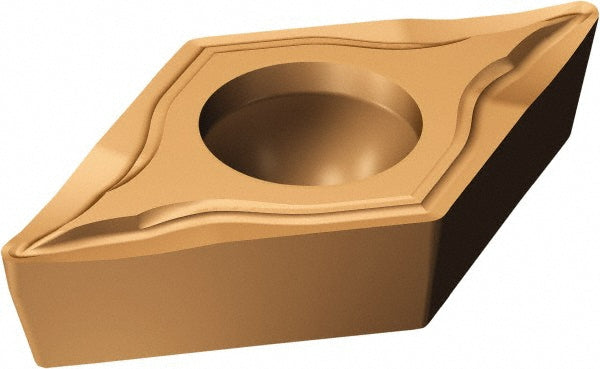

DCGT 11 T3 02-UM 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5730415
MFR# 5730415ISO/ANSI# DCGT 11 T3 02-UM 1115Series CoroTurn 107
$35.83List $45.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1115
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5730415 is a DCGT 11 T3 02-UM 1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerUM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4499
Insert materialCarbide
Insert shapeDiamond
Insert size code32.50
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT 11 T3 02-UM 1115
Length range0.4000 - 0.5000
Manufacturer grade1115
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
