Sandvik Coromant

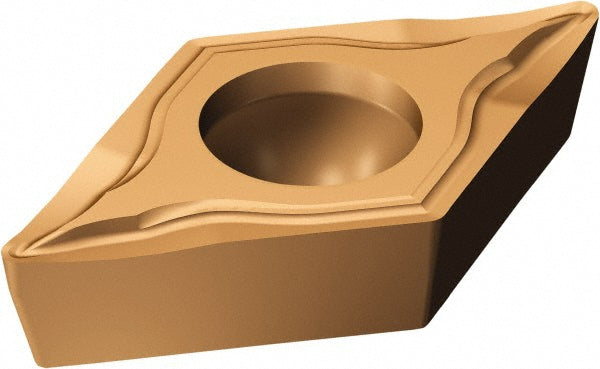

DCGT 07 02 02-UM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5730426
MFR# 5730426ISO/ANSI# DCGT 07 02 02-UM 1125Series CoroTurn 107
$26.86List $34.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5730426 is a DCGT 07 02 02-UM 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerUM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Hole diameter0.1102
Included angle55
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2973
Insert materialCarbide
Insert shapeDiamond
Insert size code21.50
Insert styleDCGT
Insert thickness in3/32
Iso codeDCGT 07 02 02-UM 1125
Length range0.0000 - 0.3000
Manufacturer grade1125
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloy; Titanium
Tolerance codeG
Wiper edgeNo
