Sandvik Coromant

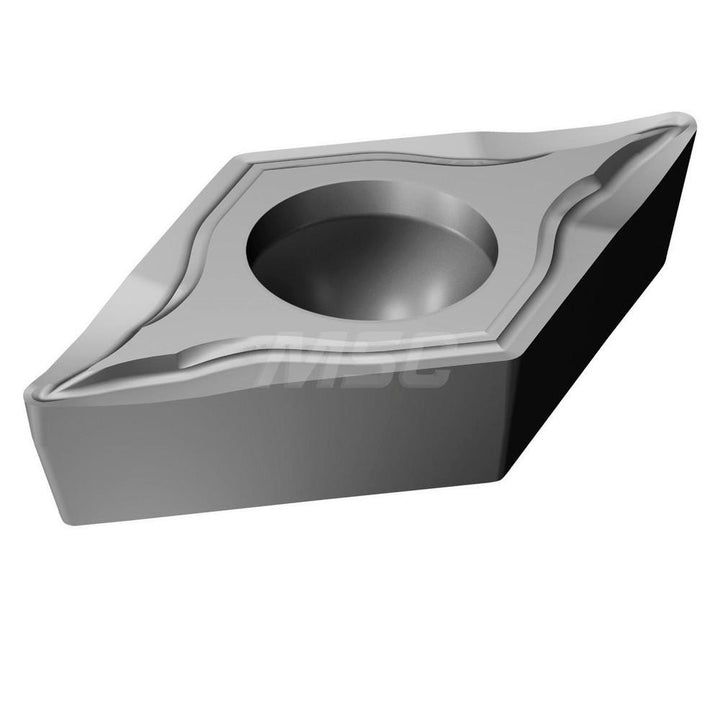

DCGT070201UMH13A Carbide Insert, Grade H13A - Sandvik Coromant 5730436
MFR# 5730436ISO/ANSI# concatenate(prodval('ATT_InsertStyle_TXT'),prodval('ATT_ISOSizeCode_TXT'))Series CoroTurn 107
$19.46List $24.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5730436 is a DCGT070201UMH13A carbide indexable insert, grade H13A. Suited for steel.
Specifications
Ansi insert codeconcatenate(prodval('ATT_InsertStyle_TXT'),prodval('ATT_ANSISizeCode_TXT'))
Chip breakerUM
Clearance codeC
Corner radius0.0039
Hole diameter0.1102
Included angle55
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.3051
Insert materialCarbide
Insert shapeDiamond
Insert size code21.503
Insert styleDCGT
Insert thickness in3/32
Iso codeDCGT070201UMH13A
Iso insert codeconcatenate(prodval('ATT_InsertStyle_TXT'),prodval('ATT_ISOSizeCode_TXT'))
Length range0.3000 - 0.4000
Manufacturers catalog number5730436
Manufacturer gradeH13A
Maximum depth of cut0.3012
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeG
Wiper edgeNo
