Sandvik Coromant

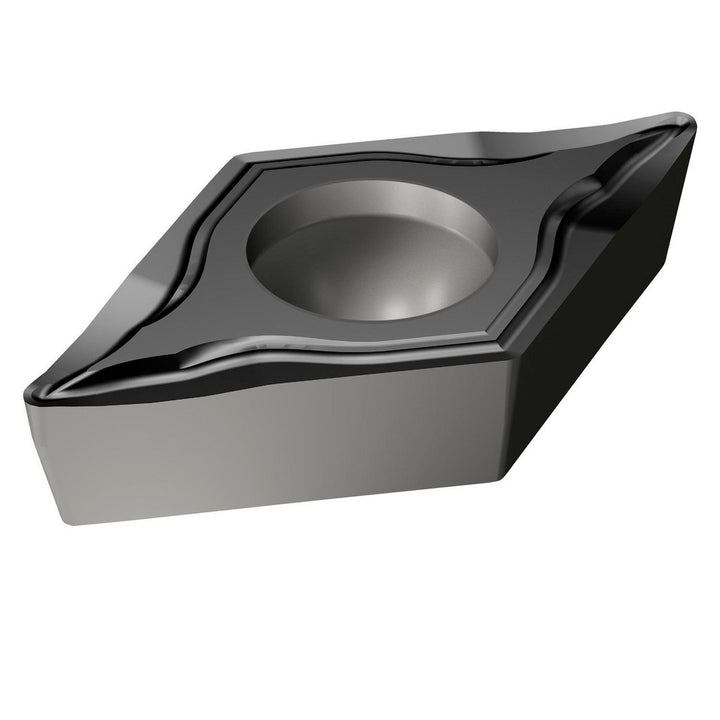

DCET 11 T3 02-UM 1105 Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 5730463
MFR# 5730463ISO/ANSI# DCET 11 T3 02-UM 1105Series CoroTurn 107
$39.45List $50.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1105
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5730463 is a DCET 11 T3 02-UM 1105 carbide indexable insert, grade 1105, TiAlN coated. Suited for steel.
Specifications
Chip breakerUM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4499
Insert materialCarbide
Insert shapeDiamond
Insert size code32.50
Insert styleDCET
Insert thickness in5/32
Iso codeDCET 11 T3 02-UM 1105
Length range0.4000 - 0.5000
Manufacturer grade1105
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeE
Wiper edgeNo
