Sandvik Coromant

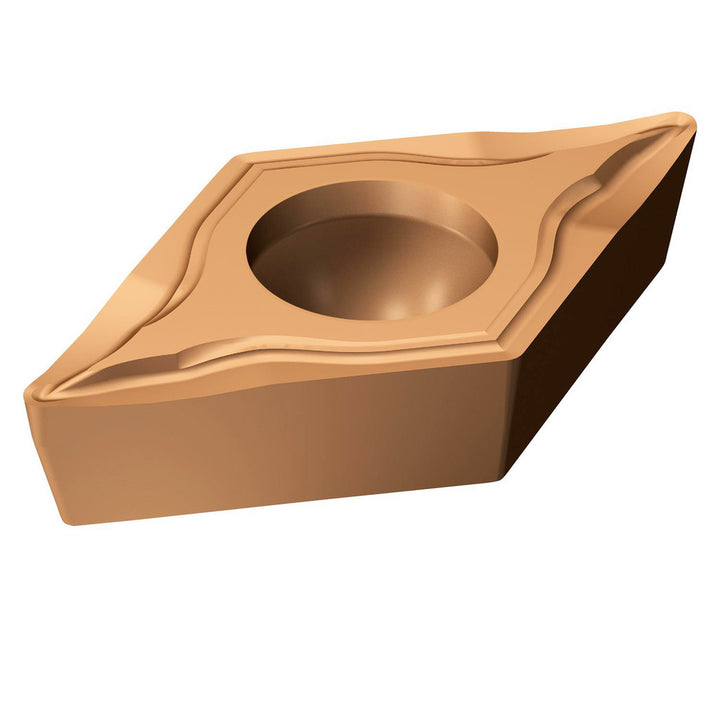

DCET 11 T3 04-UM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5730477
MFR# 5730477ISO/ANSI# DCET 11 T3 04-UM 1125Series CoroTurn 107
$36.53List $46.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5730477 is a DCET 11 T3 04-UM 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerUM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4420
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleDCET
Insert thickness in5/32
Iso codeDCET 11 T3 04-UM 1125
Length range0.4000 - 0.5000
Manufacturer grade1125
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeE
Wiper edgeNo
