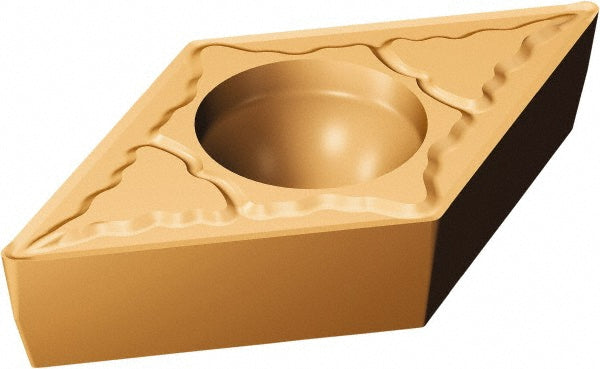

DCMT 11 T3 08-MM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5730504

Sandvik Coromant

DCMT 11 T3 08-MM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5730504

MFR# 5730504ISO/ANSI# DCMT11T308Series CoroTurn 107

$17.93List $23.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
Grade1125
MaterialCarbide
CoatingTiAlN

Description

The Sandvik Coromant 5730504 is a DCMT 11 T3 08-MM 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.

Specifications

Ansi insert codeDCMT32.52
Ansi size code32.52
Chip breakerMM
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4263
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code32.52
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT 11 T3 08-MM 1125
Iso insert codeDCMT11T308
Iso size code11T308
Length range0.4000 - 0.5000
Manufacturer grade1125
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
Side clearancePositive
Tolerance codeM
Wiper edgeNo
