Sandvik Coromant

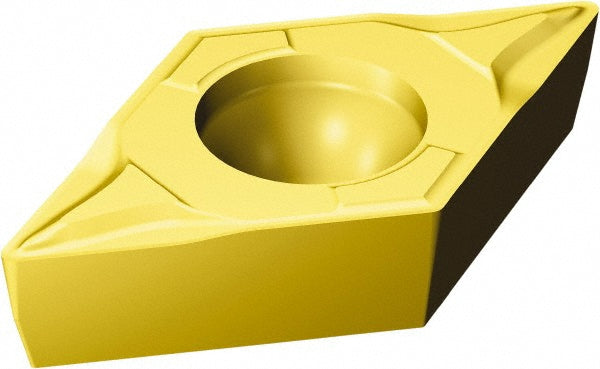

DCMT 11 T3 08-MF 2015 Carbide Insert, Grade 2015, TiAlN - Sandvik Coromant 5730536
MFR# 5730536ISO/ANSI# DCMT 11 T3 08-MF 2015Cat# DCMT 11 T3 08-MF 2015Series CoroTurn 107
$18.52List $23.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade2015
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5730536 is a DCMT 11 T3 08-MF 2015 carbide indexable insert, grade 2015, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMF
Clearance codeC
Coating finishTiAlN
Corner radius in1/32
Full radiusYes
Hole diameter0.1563
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4263
Insert materialCarbide
Insert shapeDiamond
Insert size code32.52
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT 11 T3 08-MF 2015
Length range0.4000 - 0.5000
Manufacturers catalog numberDCMT 11 T3 08-MF 2015
Manufacturer grade2015
Maximum depth of cut0.4263
Multi use applicationTurning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Tolerance codeM
Wiper edgeNo
