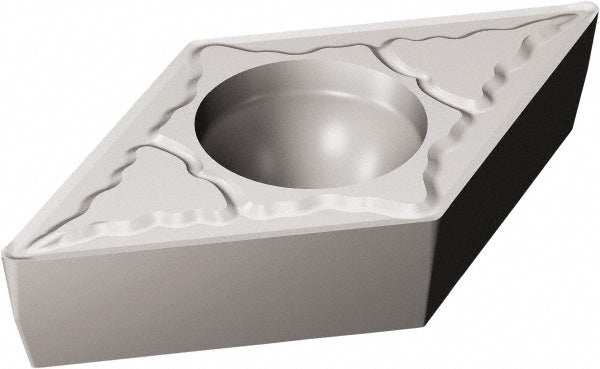

DCMT 07 02 04-PM 5015 Cermet Insert, Grade 5015 - Sandvik Coromant 5730543
MFR# 5730543ISO/ANSI# DCMT 07 02 04-PM 5015Series CoroTurn 107
$13.10List $16.79
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade5015
MaterialCermet
Description
The Sandvik Coromant 5730543 is a DCMT 07 02 04-PM 5015 cermet indexable insert, grade 5015. Suited for steel.
Specifications
Chip breakerPM
Clearance codeC
Coating processUncoated
Corner radius in1/64
Hole diameter0.1102
Included angle55
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.3051
Insert materialCermet
Insert shapeDiamond
Insert size code21.51
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT 07 02 04-PM 5015
Length range0.3000 - 0.4000
Manufacturers catalog number5730543
Manufacturer grade5015
Maximum depth of cut0.2894
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
