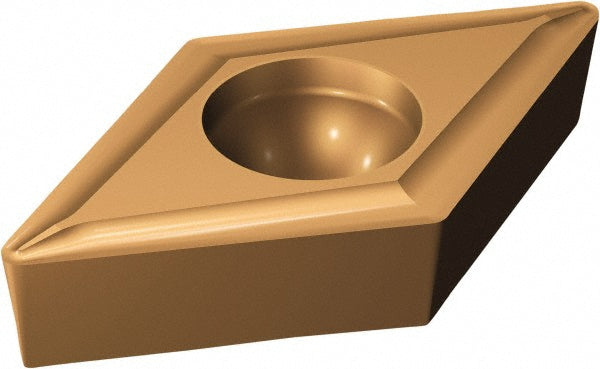

DCMT 07 02 04-UF 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5730546

Sandvik Coromant

DCMT 07 02 04-UF 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5730546

MFR# 5730546ISO/ANSI# DCMT070204Series CoroTurn 107

$14.44List $18.52 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeD - Diamond (Rhombic) 55-Deg
Grade1125
MaterialCarbide
CoatingTiAlN

Description

The Sandvik Coromant 5730546 is a DCMT 07 02 04-UF 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.

Specifications

Ansi insert codeDCMT21.51
Ansi size code21.51
Chip breakerUF
Chip breaker operationFinishing
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness
Hole diameter0.1102
Included angle55
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2894
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code21.51
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT 07 02 04-UF 1125
Iso insert codeDCMT070204
Iso size code070204
Length range0.0000 - 0.3000
Manufacturer grade1125
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloy; Titanium
Side clearancePositive
Tolerance codeM
Wiper edgeNo
