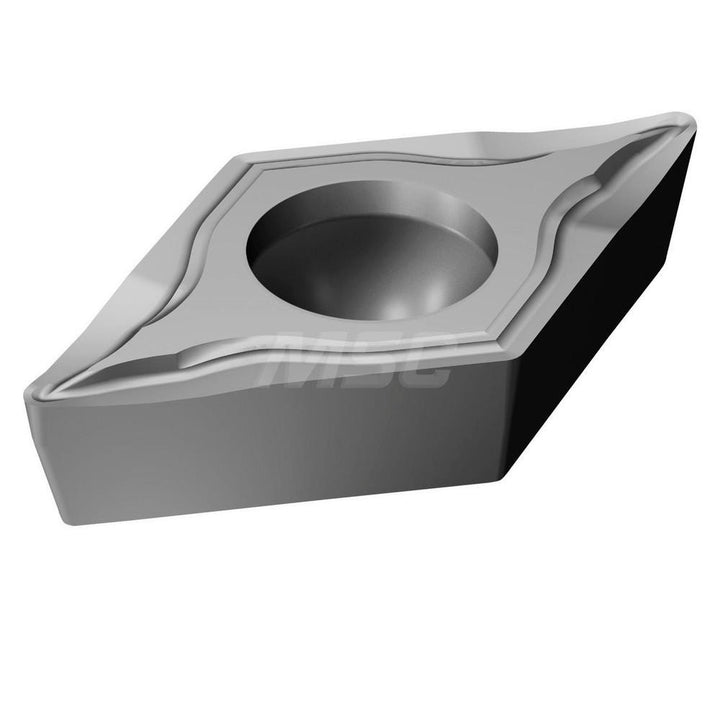

DCGT 11 T3 08-UM H13A Carbide Insert, Grade H13A - Sandvik Coromant 5730617
MFR# 5730617ISO/ANSI# DCGT 11 T3 08-UM H13ASeries CoroTurn 107
$26.15List $33.53
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5730617 is a DCGT 11 T3 08-UM H13A carbide indexable insert, grade H13A. Suited for steel.
Specifications
Chip breakerUM
Clearance codeC
Corner radius in1/32
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4263
Insert materialCarbide
Insert shapeDiamond
Insert size code32.52
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT 11 T3 08-UM H13A
Length range0.4000 - 0.5000
Manufacturer gradeH13A
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeG
Wiper edgeNo
