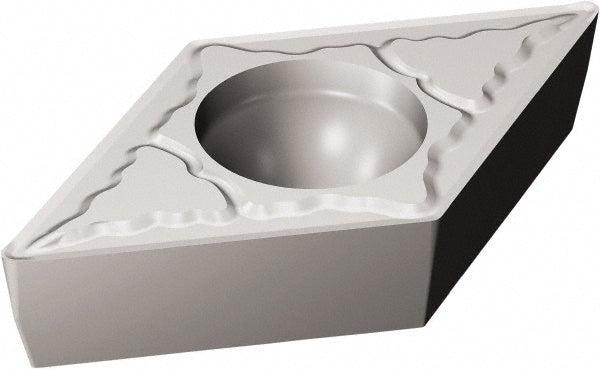

DCMT 11 T3 04-PM 5015 Cermet Insert, Grade 5015 - Sandvik Coromant 5730620

Sandvik Coromant

DCMT 11 T3 04-PM 5015 Cermet Insert, Grade 5015 - Sandvik Coromant 5730620

MFR# 5730620ISO/ANSI# DCMT11T304Series CoroTurn 107

$17.56List $22.52 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
Grade5015
MaterialCermet

Description

The Sandvik Coromant 5730620 is a DCMT 11 T3 04-PM 5015 cermet indexable insert, grade 5015. Suited for steel.

Specifications

Ansi insert codeDCMT32.51
Ansi size code32.51
Chip breakerPM
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating processUncoated
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Materials (H) - High Wear-Resistance
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4579
Insert materialCermet
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code32.51
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT 11 T3 04-PM 5015
Iso insert codeDCMT11T304
Iso size code11T304
Length range0.4000 - 0.5000
Manufacturers catalog number5730620
Manufacturer grade5015
Maximum depth of cut0.4421
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Side clearancePositive
Tolerance codeM
Wiper edgeNo
