Sandvik Coromant

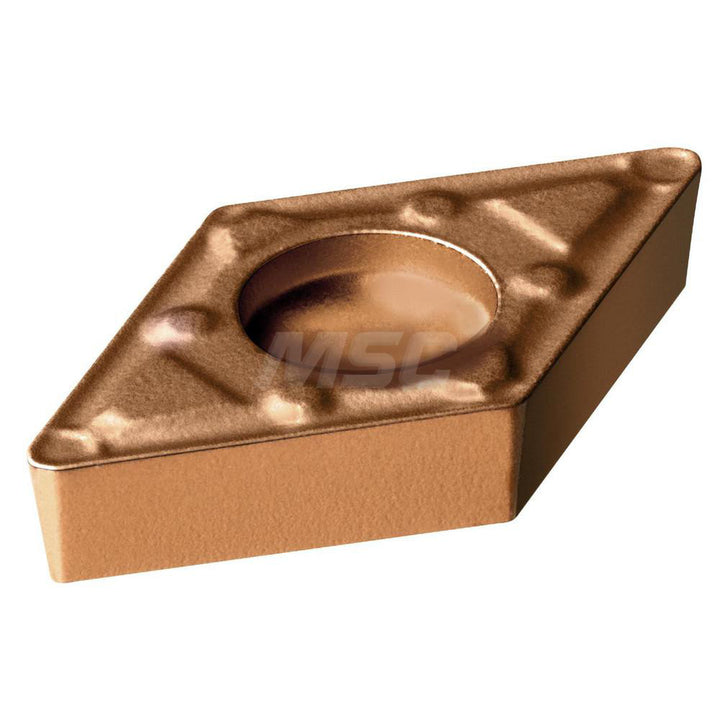

DCMX 11 T3 02-WF 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5730653
MFR# 5730653ISO/ANSI# DCMX 11 T3 02-WF 1125Series CoroTurn 107
$23.83List $30.56
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5730653 is a DCMX 11 T3 02-WF 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerWF
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4499
Insert materialCarbide
Insert shapeDiamond
Insert size code32.50
Insert styleDCMX
Insert thickness in5/32
Iso codeDCMX 11 T3 02-WF 1125
Length range0.4000 - 0.5000
Manufacturer grade1125
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeYes
