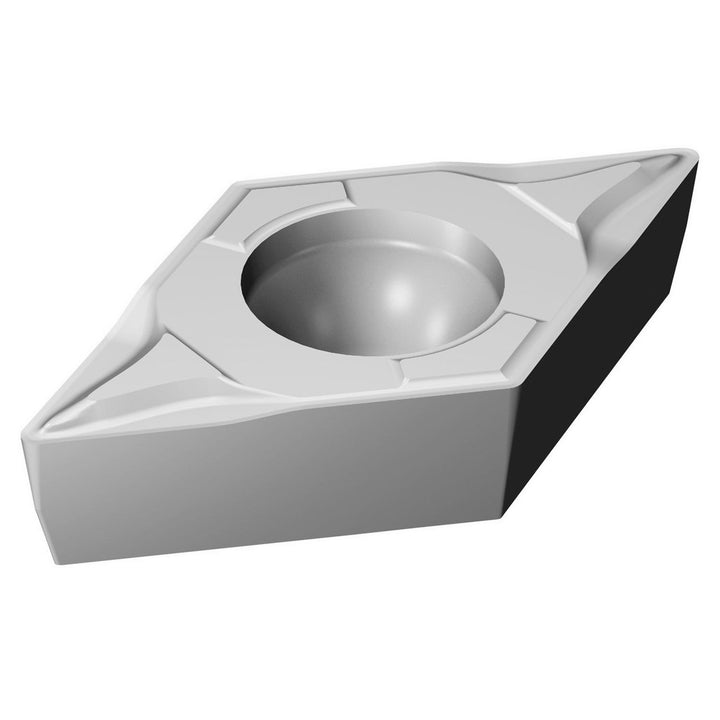

DCMT11T304KFH13A Carbide Insert, Grade H13A - Sandvik Coromant 5730680

Sandvik Coromant

DCMT11T304KFH13A Carbide Insert, Grade H13A - Sandvik Coromant 5730680

MFR# 5730680ISO/ANSI# DCMT11T304Series CoroTurn 107

$13.06List $16.75 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeH13A
MaterialCarbide

Description

The Sandvik Coromant 5730680 is a DCMT11T304KFH13A carbide indexable insert, grade H13A. Suited for cast iron.

Specifications

Ansi insert codeDCMT32.51
Ansi size code32.51
Chip breakerKF
Chip breaker operationFinishing
Clearance codeC
Corner radius in1/64
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and T
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4579
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code32.51
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T304KFH13A
Iso insert codeDCMT11T304
Iso size code11T304
Length range0.4000 - 0.5000
Manufacturers catalog number5730680
Manufacturer gradeH13A
Maximum depth of cut0.4421
Number of cutting edges2
Primary workpiece materialCast Iron
Relief angle7
Secondary workpiece materialNon-Ferrous Metal
Side clearancePositive
Tolerance codeM
Wiper edgeNo
