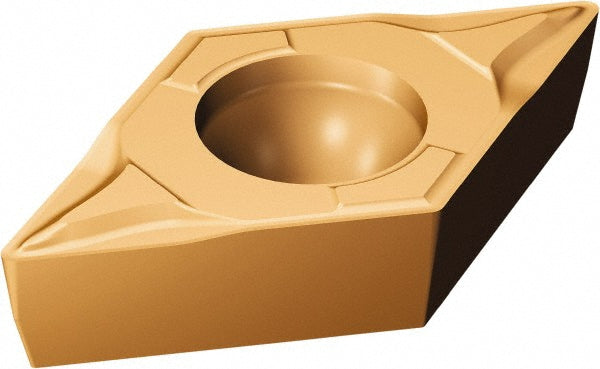

DCMT 11 T3 02-MF 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5730692

Sandvik Coromant

DCMT 11 T3 02-MF 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5730692

MFR# 5730692ISO/ANSI# DCMT11T301Series CoroTurn 107

$20.59List $26.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
Grade1125
MaterialCarbide
CoatingTiAlN

Description

The Sandvik Coromant 5730692 is a DCMT 11 T3 02-MF 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.

Specifications

Ansi insert codeDCMT32.50
Ansi size code32.50
Chip breakerMF
Chip breaker operationFinishing
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4499
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code32.50
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT 11 T3 02-MF 1125
Iso insert codeDCMT11T301
Iso size code11T301
Length range0.4000 - 0.5000
Manufacturer grade1125
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
Side clearancePositive
Tolerance codeM
Wiper edgeNo
