Sandvik Coromant

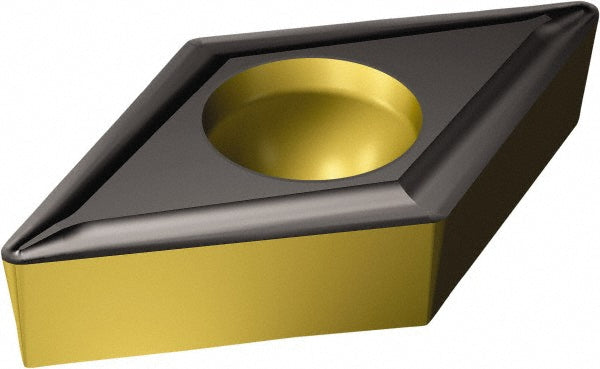

DCMT 07 02 02-UF 1515 Carbide Insert, Grade 1515, TiCN - Sandvik Coromant 5730714
MFR# 5730714ISO/ANSI# DCMT 07 02 02-UF 1515Cat# DCMT 07 02 02-UF 1515Series CoroTurn 107
$16.42List $21.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade1515
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5730714 is a DCMT 07 02 02-UF 1515 carbide indexable insert, grade 1515, TiCN coated. Suited for steel.
Specifications
Chip breakerUF
Clearance codeC
Coating finishTiCN
Corner radius0.0079
Full radiusYes
Hole diameter0.0937
Included angle55
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2973
Insert materialCarbide
Insert shapeDiamond
Insert size code21.5
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT 07 02 02-UF 1515
Length range0.0000 - 0.3000
Manufacturers catalog numberDCMT 07 02 02-UF 1515
Manufacturer grade1515
Maximum depth of cut0.2973
Multi use applicationTurning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
