Sandvik Coromant

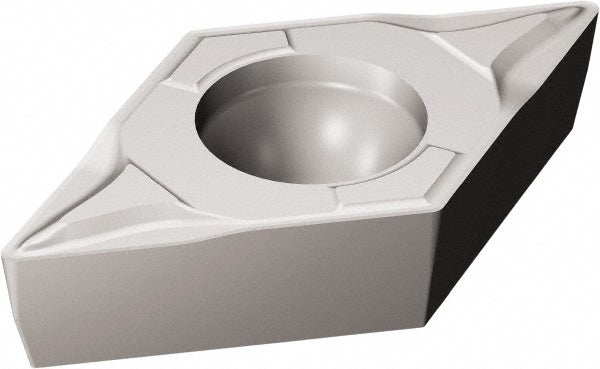

DCMT070202KFH13A Carbide Insert, Grade H13A - Sandvik Coromant 5730727
MFR# 5730727ISO/ANSI# DCMT070201Series CoroTurn 107
$11.96List $15.34
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeD - Diamond (Rhombic) 55-Deg
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5730727 is a DCMT070202KFH13A carbide indexable insert, grade H13A.
Specifications
Ansi insert codeDCMT21.50
Ansi size code21.50
Chip breakerKF
Chip breaker operationFinishing
Clearance codeC
Corner radius0.0079
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and T
Hole diameter0.1102
Included angle55
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.3051
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code21.5
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT070202KFH13A
Iso insert codeDCMT070201
Iso size code070201
Length range0.3000 - 0.4000
Manufacturers catalog number5730727
Manufacturer gradeH13A
Maximum depth of cut0.2972
Relief angle7
Side clearancePositive
Tolerance codeM
