Sandvik Coromant

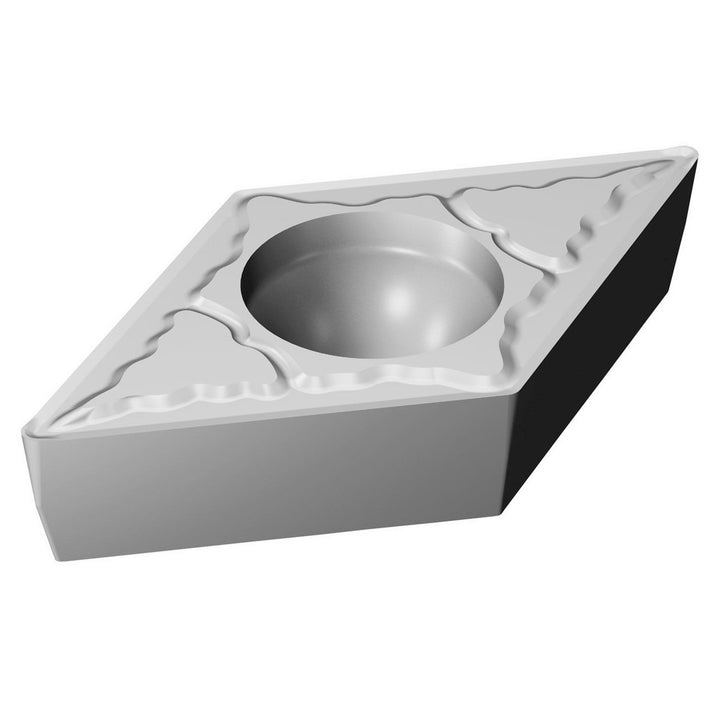

DCMT 11 T3 08-KM H13A Carbide Insert, Grade H13A - Sandvik Coromant 5730741
MFR# 5730741ISO/ANSI# DCMT 11 T3 08-KM H13ASeries CoroTurn 107
$13.06List $16.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5730741 is a DCMT 11 T3 08-KM H13A carbide indexable insert, grade H13A. Suited for cast iron.
Specifications
Chip breakerKM
Clearance codeC
Corner radius in1/32
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4263
Insert materialCarbide
Insert shapeDiamond
Insert size code32.52
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT 11 T3 08-KM H13A
Length range0.4000 - 0.5000
Manufacturer gradeH13A
Number of cutting edges2
Primary workpiece materialCast Iron
Relief angle7
Secondary workpiece materialNon-Ferrous Metal
Tolerance codeM
Wiper edgeNo
