Sandvik Coromant

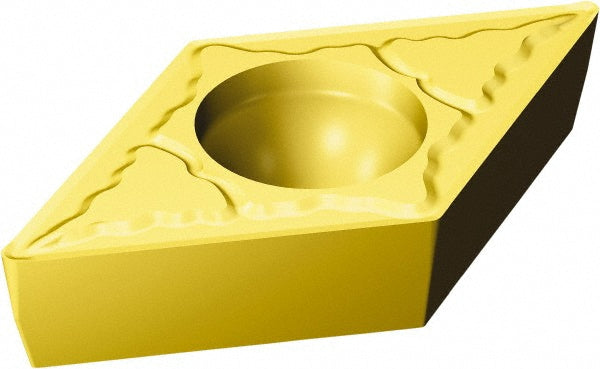

DCMT 11 T3 08-KM 3005 Carbide Insert, Grade 3005, TiCN - Sandvik Coromant 5730742
MFR# 5730742ISO/ANSI# DCMT 11 T3 08-KM 3005Cat# DCMT 11 T3 08-KM 3005Series CoroTurn 107
$17.56List $22.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade3005
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5730742 is a DCMT 11 T3 08-KM 3005 carbide indexable insert, grade 3005, TiCN coated. Suited for cast iron.
Specifications
Chip breakerKM
Clearance codeC
Coating finishTiCN
Corner radius in1/32
Full radiusYes
Hole diameter0.1563
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4263
Insert materialCarbide
Insert shapeDiamond
Insert size code32.52
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT 11 T3 08-KM 3005
Length range0.4000 - 0.5000
Manufacturers catalog numberDCMT 11 T3 08-KM 3005
Manufacturer grade3005
Maximum depth of cut0.4263
Multi use applicationTurning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
Relief angle7
Tolerance codeM
Wiper edgeNo
