Sandvik Coromant

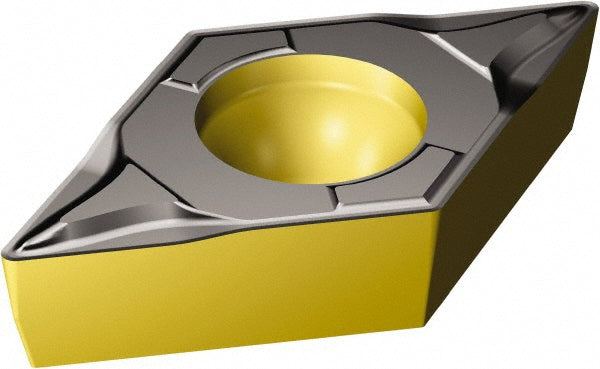

DCMT 11 T3 08-KM 3210 Carbide Insert, Grade 3210, TiCN - Sandvik Coromant 5730744
MFR# 5730744ISO/ANSI# DCMT 11 T3 08-KM 3210Series CoroTurn 107
$17.77List $22.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade3210
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5730744 is a DCMT 11 T3 08-KM 3210 carbide indexable insert, grade 3210, TiCN coated. Suited for cast iron.
Specifications
Chip breakerKM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4263
Insert materialCarbide
Insert shapeDiamond
Insert size code32.52
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT 11 T3 08-KM 3210
Length range0.4000 - 0.5000
Manufacturer grade3210
Number of cutting edges2
Primary workpiece materialCast Iron
Relief angle7
Tolerance codeM
Wiper edgeNo
