Sandvik Coromant

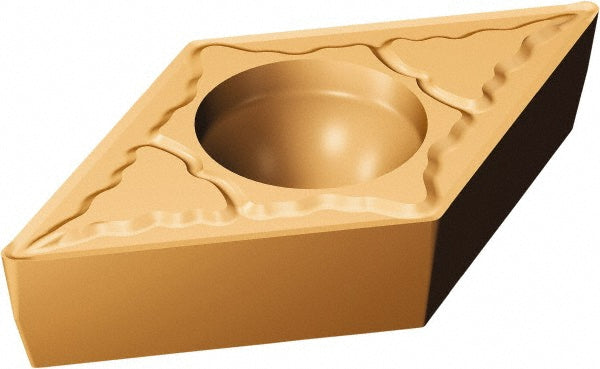

DCMT 07 02 04-MM 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5730841
MFR# 5730841ISO/ANSI# DCMT 07 02 04-MM 1115Cat# DCMT 07 02 04-MM 1115Series CoroTurn 107
$13.37List $17.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade1115
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5730841 is a DCMT 07 02 04-MM 1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Full radiusYes
Hole diameter0.0937
Included angle55
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2894
Insert materialCarbide
Insert shapeDiamond
Insert size code21.51
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT 07 02 04-MM 1115
Length range0.0000 - 0.3000
Manufacturers catalog numberDCMT 07 02 04-MM 1115
Manufacturer grade1115
Maximum depth of cut0.2894
Multi use applicationTurning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
