Sandvik Coromant

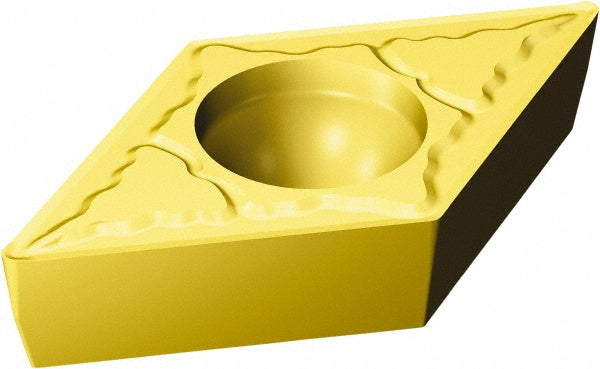

DCMT 11 T3 08-PM 1525 Carbide Insert, Grade 1525, TiCN - Sandvik Coromant 5730900
MFR# 5730900ISO/ANSI# DCMT 11 T3 08-PM 1525
$17.56List $22.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1525
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5730900 is a DCMT 11 T3 08-PM 1525 carbide indexable insert, grade 1525, TiCN coated.
Specifications
Chip breakerT
Clearance codeC
Coating finishTiCN
Corner radius in1/32
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.4263
Insert materialCarbide
Insert shapeDiamond
Insert size code32.52
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT 11 T3 08-PM 1525
Length range0.4000 - 0.5000
Manufacturer grade1525
Relief angle7
Tolerance codeM
