Sandvik Coromant
DCMX 11 T3 08-WM 2015 Carbide Insert, Grade 2015, TiCN - Sandvik Coromant 5730917
MFR# 5730917ISO/ANSI# DCMX 11 T3 08-WM 2015Cat# DCMX 11 T3 08-WM 2015Series CoroTurn 107
$21.30List $27.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeParallelogram
Grade2015
MaterialCarbide
CoatingTiCN
Description

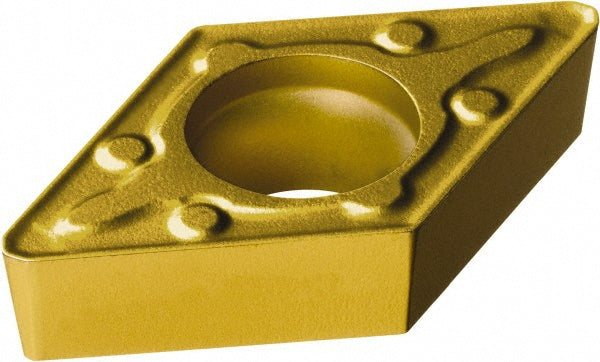

The Sandvik Coromant 5730917 is a DCMX 11 T3 08-WM 2015 carbide indexable insert, grade 2015, TiCN coated.
Specifications
Chip breakerX
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Full radiusYes
Hole diameter0.1563
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4263
Insert materialCarbide
Insert shapeParallelogram
Insert size code32.52
Insert styleDCMX
Insert thickness in5/32
Iso codeDCMX 11 T3 08-WM 2015
Length range0.4000 - 0.5000
Manufacturers catalog numberDCMX 11 T3 08-WM 2015
Manufacturer grade2015
Maximum depth of cut0.4263
Multi use applicationTurning
Multi use toolYes
Relief angle7
Tolerance codeM
