Sandvik Coromant

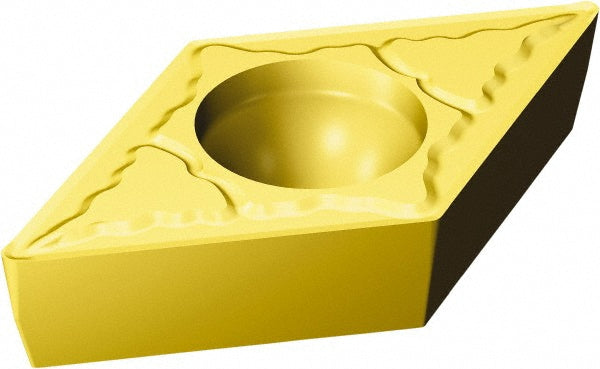

DCMT 11 T3 04-MM 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5730942
MFR# 5730942ISO/ANSI# DCMT 11 T3 04-MM 2025Series CoroTurn 107
$18.52List $23.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade2025
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5730942 is a DCMT 11 T3 04-MM 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4420
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT 11 T3 04-MM 2025
Length range0.4000 - 0.5000
Manufacturer grade2025
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Tolerance codeM
Wiper edgeNo
