Sandvik Coromant
DCMT 11 T3 04-PF 1515 Carbide Insert, Grade 1515, TiCN - Sandvik Coromant 5730945
MFR# 5730945ISO/ANSI# DCMT 11 T3 04-PF 1515Series CoroTurn 107
$17.93List $23.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1515
MaterialCarbide
CoatingTiCN
Description

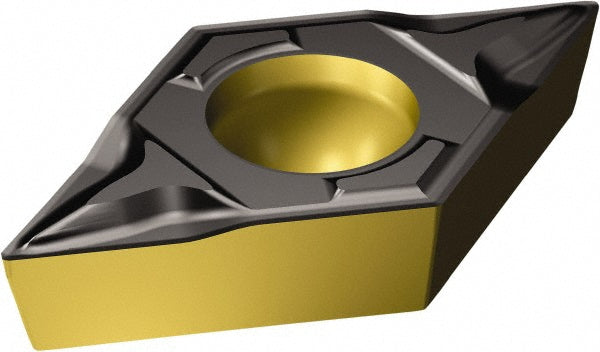

The Sandvik Coromant 5730945 is a DCMT 11 T3 04-PF 1515 carbide indexable insert, grade 1515, TiCN coated. Suited for steel.
Specifications
Chip breakerPF
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4420
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT 11 T3 04-PF 1515
Length range0.4000 - 0.5000
Manufacturer grade1515
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
