Sandvik Coromant
DCMT 11 T3 08-UM 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5730986
MFR# 5730986ISO/ANSI# DCMT 11 T3 08-UM 1115Series CoroTurn 107
$19.37List $24.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1115
MaterialCarbide
CoatingTiAlN
Description

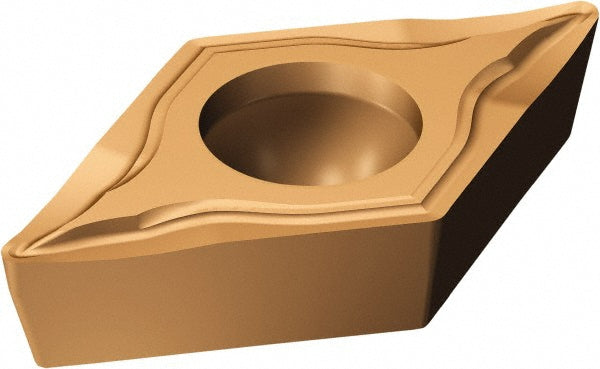

The Sandvik Coromant 5730986 is a DCMT 11 T3 08-UM 1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerUM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4263
Insert materialCarbide
Insert shapeDiamond
Insert size code32.52
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT 11 T3 08-UM 1115
Length range0.4000 - 0.5000
Manufacturer grade1115
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
