Sandvik Coromant
DCMT 07 02 08-MM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5730993
MFR# 5730993ISO/ANSI# DCMT 07 02 08-MM 1125
$14.44List $18.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade1125
MaterialCarbide
CoatingTiAlN
Description

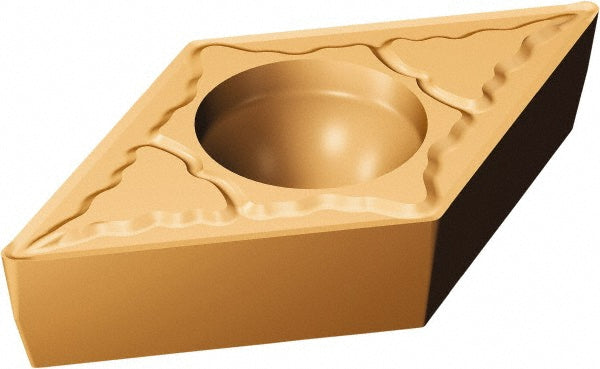

The Sandvik Coromant 5730993 is a DCMT 07 02 08-MM 1125 carbide indexable insert, grade 1125, TiAlN coated.
Specifications
Chip breakerT
Clearance codeC
Coating finishTiAlN
Corner radius in1/32
Hole diameter0.1102
Included angle55
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.2737
Insert materialCarbide
Insert shapeDiamond
Insert size code21.52
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT 07 02 08-MM 1125
Length range0.0000 - 0.3000
Manufacturer grade1125
Relief angle7
Tolerance codeM
