Sandvik Coromant

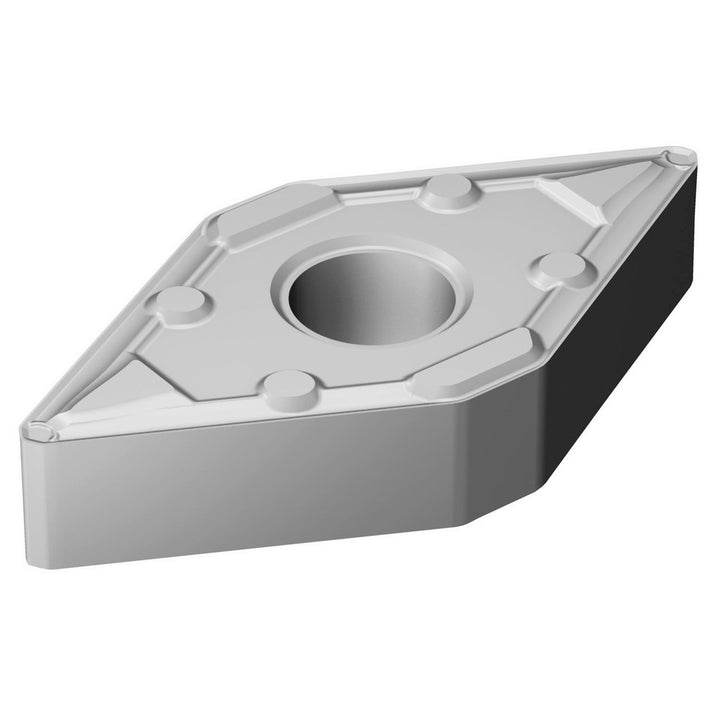

DNMX 15 04 04-WF 5015 Carbide Insert, Grade 5015 - Sandvik Coromant 5731231
MFR# 5731231ISO/ANSI# DNMX 15 04 04-WF 5015Series T-Max P
$25.76List $33.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade5015
MaterialCarbide
Description
The Sandvik Coromant 5731231 is a DNMX 15 04 04-WF 5015 carbide indexable insert, grade 5015. Suited for steel.
Specifications
Chip breakerWF
Clearance codeN
Corner radius in1/64
Hole diameter0.2030
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5946
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleDNMX
Insert thickness in3/16
Iso codeDNMX 15 04 04-WF 5015
Length range0.5000 - 0.6000
Manufacturer grade5015
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeYes
