Sandvik Coromant

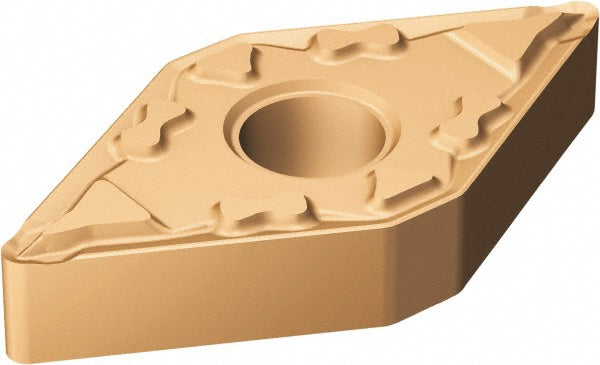

DNMG 15 04 08-MF 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5731307
MFR# 5731307ISO/ANSI# DNMG 15 04 08-MF 1115Series T-Max P
$24.59List $31.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade1115
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5731307 is a DNMG 15 04 08-MF 1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.2030
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5789
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 15 04 08-MF 1115
Length range0.5000 - 0.6000
Manufacturer grade1115
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
