Sandvik Coromant

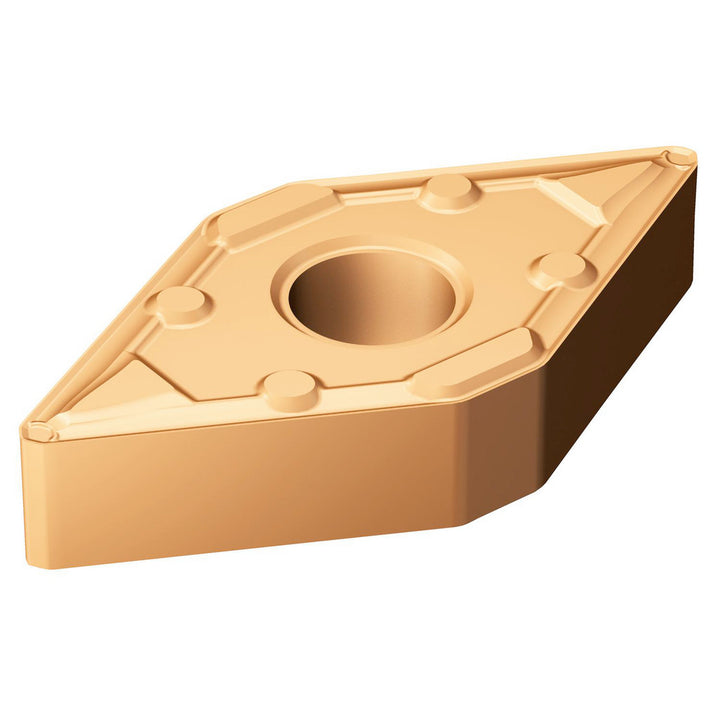

DNMX 15 04 08-WF 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5731338
MFR# 5731338ISO/ANSI# DNMX 15 04 08-WF 1125Cat# DNMX 15 04 08-WF 1125Series T-Max P
$28.30List $36.29
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5731338 is a DNMX 15 04 08-WF 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerWF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Full radiusYes
Hole diameter0.1875
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5789
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleDNMX
Insert thickness in3/16
Iso codeDNMX 15 04 08-WF 1125
Length range0.5000 - 0.6000
Manufacturers catalog numberDNMX 15 04 08-WF 1125
Manufacturer grade1125
Maximum depth of cut0.5789
Multi use applicationTurning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeYes
