Sandvik Coromant

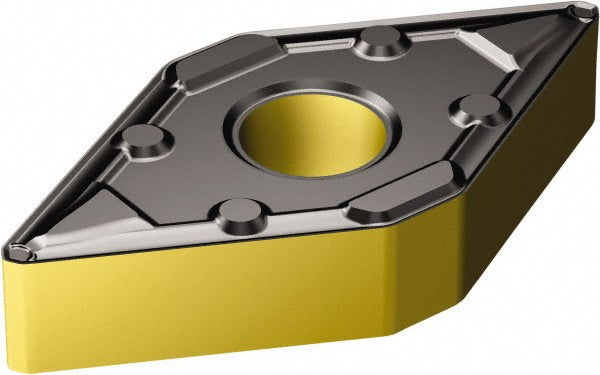

DNMX 15 04 08-WF 1515 Carbide Insert, Grade 1515, TiCN - Sandvik Coromant 5731349
MFR# 5731349ISO/ANSI# DNMX 15 04 08-WF 1515Cat# DNMX 15 04 08-WF 1515Series T-Max P
$26.19List $33.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeParallelogram
Grade1515
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5731349 is a DNMX 15 04 08-WF 1515 carbide indexable insert, grade 1515, TiCN coated.
Specifications
Chip breakerX
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Full radiusYes
Hole diameter0.1875
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5789
Insert materialCarbide
Insert shapeParallelogram
Insert size code432
Insert styleDNMX
Insert thickness in3/16
Iso codeDNMX 15 04 08-WF 1515
Length range0.5000 - 0.6000
Manufacturers catalog numberDNMX 15 04 08-WF 1515
Manufacturer grade1515
Maximum depth of cut0.5789
Multi use applicationTurning
Multi use toolYes
Relief angle0
Tolerance codeM
