Sandvik Coromant
DNGA 15 04 12T01020 650 Ceramic Insert, Grade 650, TiN - Sandvik Coromant 5731529
MFR# 5731529ISO/ANSI# DNGA 15 04 12T01020 650
$19.49List $25.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade650
MaterialCeramic
CoatingTiN
Description

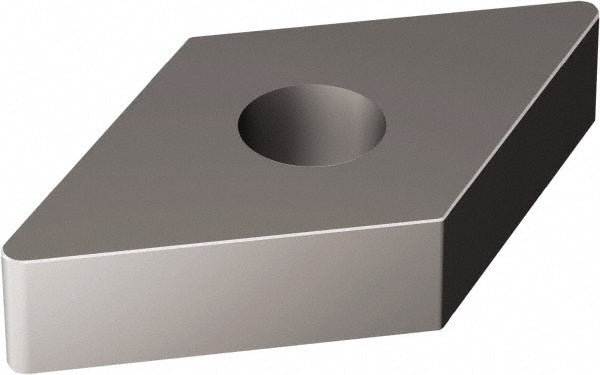

The Sandvik Coromant 5731529 is a DNGA 15 04 12T01020 650 ceramic indexable insert, grade 650, TiN coated.
Specifications
Chip breakerA
Clearance codeN
Coating finishTiN
Corner radius in3/64
Hole diameter0.2030
Included angle55
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5632
Insert materialCeramic
Insert shapeDiamond
Insert size code433
Insert styleDNGA
Insert thickness in3/16
Iso codeDNGA 15 04 12T01020 650
Length range0.5000 - 0.6000
Manufacturer grade650
Relief angle0
Tolerance codeG
