Sandvik Coromant

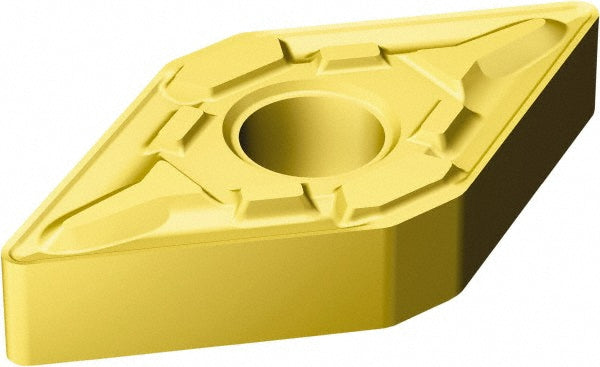

DNMG 15 04 12-MR 2015 Carbide Insert, Grade 2015, TiCN - Sandvik Coromant 5731538
MFR# 5731538ISO/ANSI# DNMG 15 04 12-MR 2015
$20.96List $26.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade2015
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5731538 is a DNMG 15 04 12-MR 2015 carbide indexable insert, grade 2015, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Corner radius in3/64
Hole diameter0.2030
Included angle55
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5632
Insert materialCarbide
Insert shapeDiamond
Insert size code433
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 15 04 12-MR 2015
Length range0.5000 - 0.6000
Manufacturer grade2015
Relief angle0
Tolerance codeM
