Sandvik Coromant
DNMG 15 04 12-MR 2035 Carbide Insert, Grade 2035, TiAlN - Sandvik Coromant 5731558
MFR# 5731558ISO/ANSI# DNMG 15 04 12-MR 2035Series T-Max P
$22.95List $29.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade2035
MaterialCarbide
CoatingTiAlN
Description

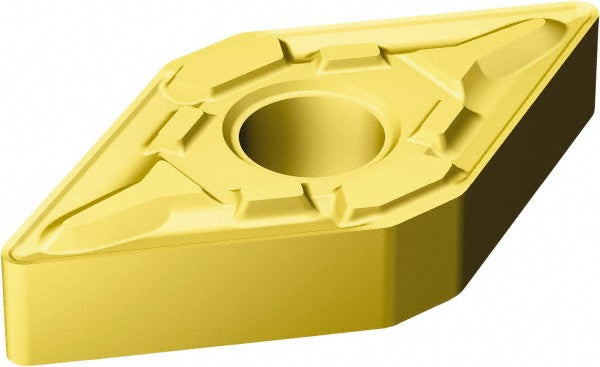

The Sandvik Coromant 5731558 is a DNMG 15 04 12-MR 2035 carbide indexable insert, grade 2035, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMR
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Hole diameter0.2030
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5632
Insert materialCarbide
Insert shapeDiamond
Insert size code433
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 15 04 12-MR 2035
Length range0.5000 - 0.6000
Manufacturer grade2035
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Tolerance codeM
Wiper edgeNo
