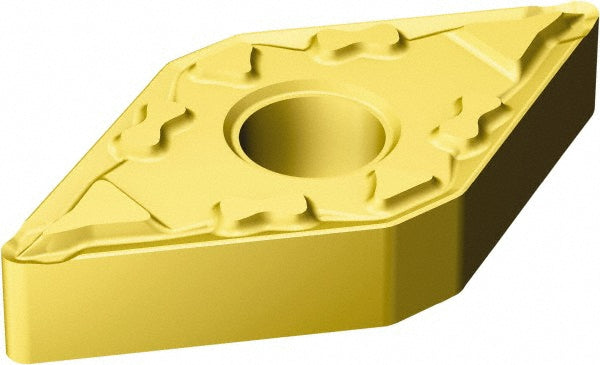

DNMG 15 06 08-MF 2015 Carbide Insert, Grade 2015, TiCN - Sandvik Coromant 5731725

Sandvik Coromant

DNMG 15 06 08-MF 2015 Carbide Insert, Grade 2015, TiCN - Sandvik Coromant 5731725

MFR# 5731725ISO/ANSI# DNMG150608Series T-Max P

$25.68List $32.94 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
Grade2015
MaterialCarbide
CoatingTiCN

Description

The Sandvik Coromant 5731725 is a DNMG 15 06 08-MF 2015 carbide indexable insert, grade 2015, TiCN coated. Suited for stainless steel.

Specifications

Ansi insert codeDNMG442
Ansi size code442
Chip breakerMF
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCN
Corner radius in1/32
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2032
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code442
Insert styleDNMG
Insert thickness in1/4
Iso codeDNMG 15 06 08-MF 2015
Iso insert codeDNMG150608
Iso size code150608
Length range0.6000 - 0.6500
Manufacturers catalog number5731725
Manufacturer grade2015
Maximum depth of cut0.5787
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
