Sandvik Coromant

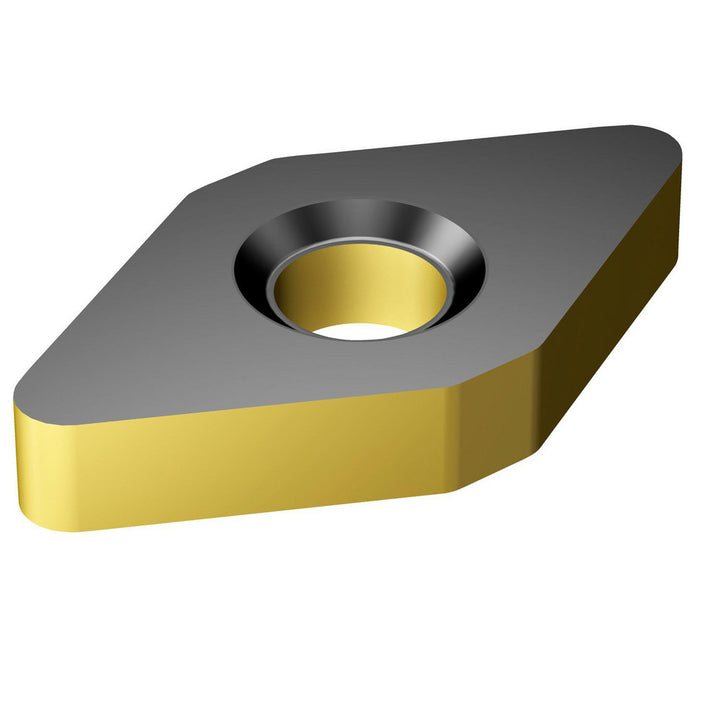

DNMA 15 04 08-KR 3210 Carbide Insert, Grade 3210, TiCN - Sandvik Coromant 5731728
MFR# 5731728ISO/ANSI# DNMA 15 04 08-KR 3210Series T-Max P
$22.26List $28.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade3210
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5731728 is a DNMA 15 04 08-KR 3210 carbide indexable insert, grade 3210, TiCN coated. Suited for cast iron.
Specifications
Chip breakerKR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5789
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleDNMA
Insert thickness in3/16
Iso codeDNMA 15 04 08-KR 3210
Length range0.5000 - 0.6000
Manufacturer grade3210
Number of cutting edges4
Primary workpiece materialCast Iron
Relief angle0
Tolerance codeM
Wiper edgeNo
