Sandvik Coromant

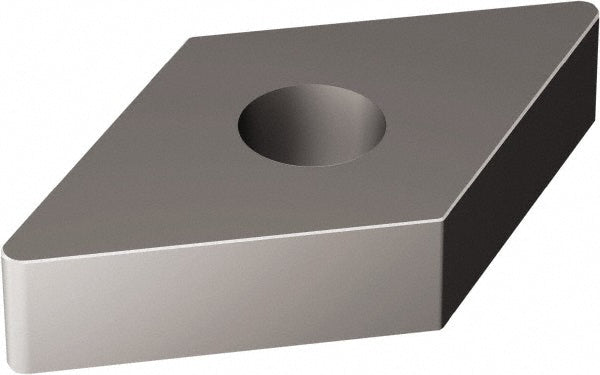

DNGA150408T01020 650 Ceramic Insert, Grade 650, TiN - Sandvik Coromant 5731966
MFR# 5731966ISO/ANSI# DNGA150408T01020 650Series T-Max P
$19.49List $25.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade650
MaterialCeramic
CoatingTiN
Description
The Sandvik Coromant 5731966 is a DNGA150408T01020 650 ceramic indexable insert, grade 650, TiN coated. Suited for cast iron.
Specifications
Chip breakerA
Clearance codeN
Coating finishTiN
Coating processUncoated
Corner radius in1/32
Hole diameter0.2030
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5789
Insert materialCeramic
Insert shapeDiamond
Insert size code432
Insert styleDNGA
Insert thickness in3/16
Iso codeDNGA150408T01020 650
Length range0.5000 - 0.6000
Manufacturer grade650
Number of cutting edges4
Primary workpiece materialCast Iron
Relief angle0
Secondary workpiece materialSuperalloy; Titanium; Hard Material
Tolerance codeG
Wiper edgeNo
